Urania’s Mirror is a boxed set of 32 constellation cards first published by Samuel Leigh of the Strand,London, in November 1824. An advertisement and review in the The London Literary Gazette for 1824 November 27 describes them as ‘fitted up in an elegant box’ and selling for £1 8s black and white or £1 14s ‘beautifully coloured’. They were described as ‘An acceptable present’ so no doubt the publication was timed to catch the Christmas market. The engraver was Sidney Hall but authorship was coyly attributed to ‘a lady’.

PeterHingley, former librarian of the Royal Astronomical Society in London, has established that the true author was almost certainly the Reverend Richard Rouse Bloxam (c.1765–1840) of Rugby (Journal of the British Astronomical Association, vol. 104, p. 238, 1994). There is, though, another possibility not mentioned by Hingley: Bloxham’s wife, Ann (1766–1835), was the sister of Sir Thomas Lawrence the portrait painter, so she might deserve at least a share of the credit as the anonymous ‘lady’.

One attractive feature of the cards is that they were perforated with small holes for each star, to give an impression of the constellation’s appearance when the cards were held up to the light. Doubtless many cards met an untimely end through being held too close to a candle flame.

The cards were hand-coloured in water colours. While the colourists followed a general style, presumably laid down by the publishers, every set is slightly different. The cards came in a box with Urania herself, the muse of astronomy, depicted on the cover holding her traditional attributes of a celestial globe and a pair of dividers.

A book called A Familiar Treatise on Astronomy by Jehoshaphat Aspin was produced specifically to accompany the cards. This book went through four editions, the fourth being published in 1834. In 1832 the cards and book were also published in the United States. Facsimiles of the cards appeared in The Box of Stars published in 1993.


Jamieson’s Atlas, the uncredited inspiration

Although Urania’s Mirror was described as being ‘on a plan perfectly original’, there seems little doubt that it was directly inspired by Alexander Jamieson’s Celestial Atlas published in London two years earlier. A comparison of the two works shows that the constellation figures have been copied almost exactly from Jamieson’s atlas.

Urania’s Mirror even adopted two figures newly introduced by Jamieson: Noctua, the owl (Card 32, a replacement for the existing Turdus Solitarius), and Norma Nilotica (Card 26), held by Aquarius, apparently intended as a gauge to measure the annual flooding of the Nile. Perhaps the real reason the author chose to remain nameless was to avoid accusations of plagiarism. It is not known what Jamieson thought of Urania’s Mirror, or if he knew of the Bloxam connection, but by an odd coincidence one of Bloxam’s sons, John Rouse Bloxam, was briefly chaplain and classical master at Jamieson’s private school in Wyke House, Middlesex, in 1832.


Cards and constellations

There were two editions of the cards. In the first edition, only the stars in those constellations named on each card’s heading were included, leaving the figures looking sadly isolated as in this example. In the second edition, which followed soon after the appearance of the first, stars were added in the surrounding constellations. It is the second edition that is illustrated below.

Urania’s Mirror features 79 constellations, not all of them still recognized by astronomers, plus three sub-constellations: Caput Medusae (the head of Medusa the Gorgon), seen on Card 6 with Perseus; Mons Maenalus on Card 10 beneath the feet of Böotes; and Cerberus, on Card 11 in the hand of Hercules. The constellation names given in the captions are as written on the cards themselves. For more about the background to these constellations, both current and obsolete, see my Star Tales pages.

The idea of constellation cards with transparent stars was adopted by at least three other authors: Franz Niklaus König’s Atlas céleste of 1826; Himmels-Atlas in transparenten Karten by Friedrich Braun in 1850; and Otto Möllinger’s Himmelsatlas of 1851, although all these lack the artistic style of Urania’s Mirror.

A second part of Urania’s Mirror, due to consist of illustrations of the planets and an orrery among other delights, was promised in 1828 and again in 1829 but seems never to have materialized.

The thumbnails below link to high-resolution scans from the US Library of Congress, cleaned up by Adam Cuerden and posted onWikipedia. The spellings are as on the original cards.



© Ian Ridpath. All rights reserved


Urania's Mirror Card 2
Urania's Mirror Card 3
Urania's Mirror Card 4

Card 1

Draco and Ursa Minor

Card 2

Camelopardalis, Tarandus, and Custos Messium

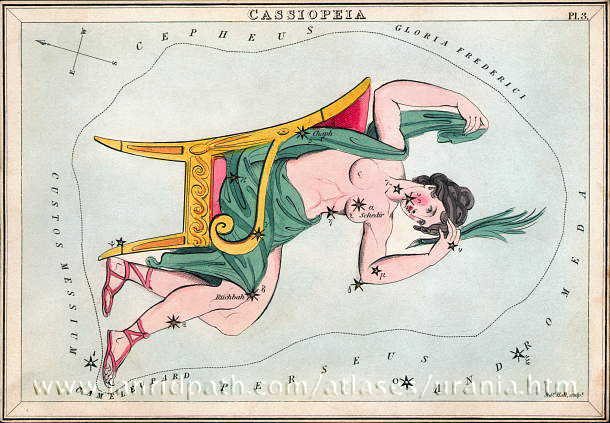

Card 3

Cassiopeia

Card 4

Cepheus

Urania's Mirror Card 5
Urania's Mirror Card 6
Urania's Mirror Card 7
Urania's Mirror Card 8

Card 5

Gloria Frederici, Andromeda, and Triangula

Card 6

Perseus and

Caput Medusae

Card 7

Auriga

Card 8

Lynx and

Telescopium Herschilii

Urania's Mirror Card 9
Urania's Mirror Card 10
Urania's Mirror Card 11
Urania's Mirror Card 12

Card 9

Ursa Major

Urania's Mirror Card 13

Card 10

Bootes, Canes Venatici, Coma Berenices, and Quadrans Muralis

Urania's Mirror Card 14

Card 11

Hercules and

Corona Borealis

Urania's Mirror Card 15

Card 12

Taurus Poniatowski, Serpentarius (i.e. Ophiuchus), Scutum Sobiesky, and Serpens

Urania's Mirror Card 16

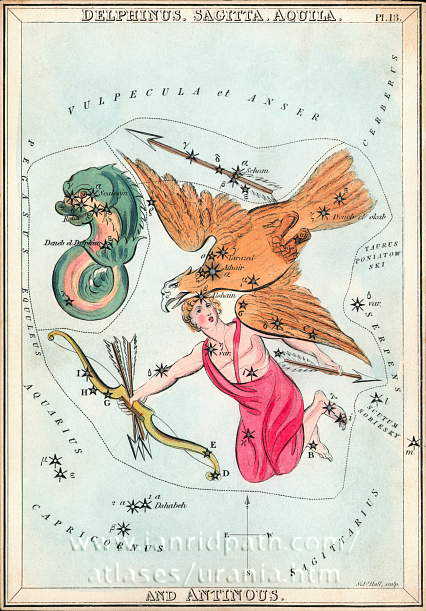

Card 13

Delphinus, Sagitta, Aquila, and Antinous

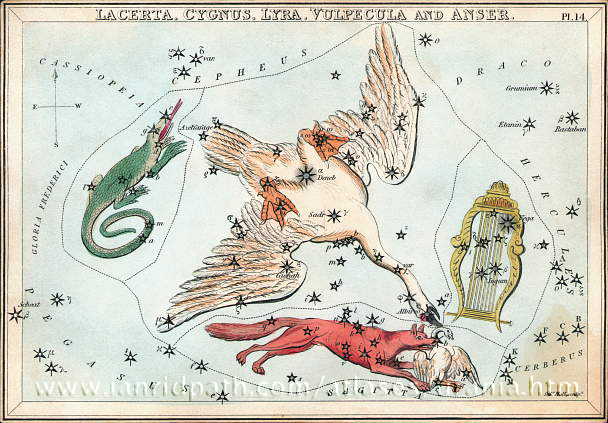

Card 14

Lacerta, Cygnus, Lyra, Vulpecula and Anser

Card 15

Pegasus and Equuleus

Card 16

Aries and Musca Borealis

Urania's Mirror Card 17
Urania's Mirror Card 18
Urania's Mirror Card 19
Urania's Mirror Card 20

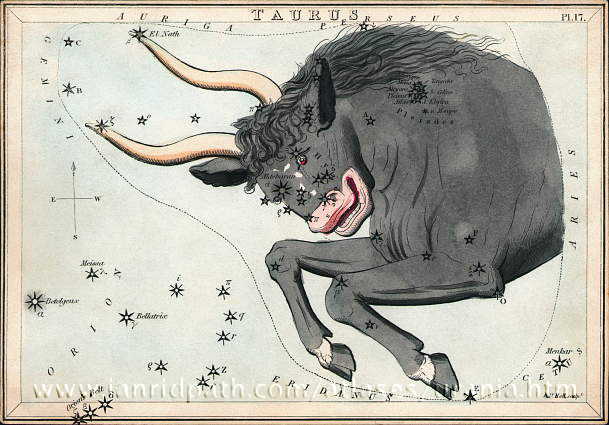

Card 17

Taurus

Card 18

Gemini

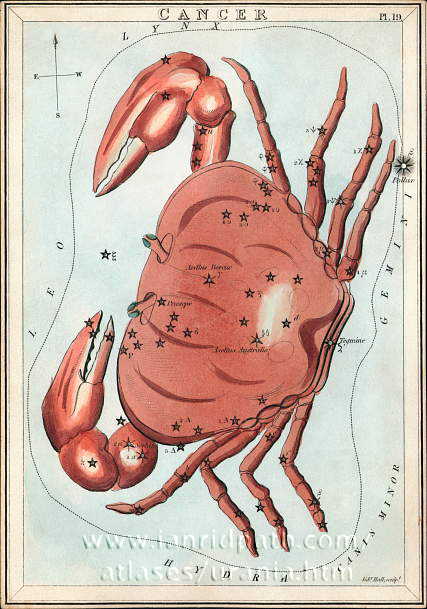

Card 19

Cancer

Card 20

Leo Major and Leo Minor

Urania's Mirror Card 21
Urania's Mirror Card 22
Urania's Mirror Card 23
Urania's Mirror Card 24

Card 21

Virgo

Card 22

Libra

Card 23

Scorpio

Card 24

Sagittarius, Corona Australis, Microscopium, and Telescopium

Urania's Mirror Card 25
Urania's Mirror Card 26
Urania's Mirror Card 27
Urania's Mirror Card 28

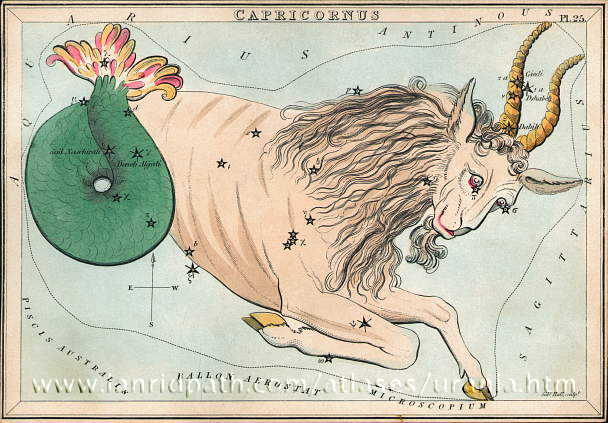

Card 25

Capricornus

Urania's Mirror Card 29

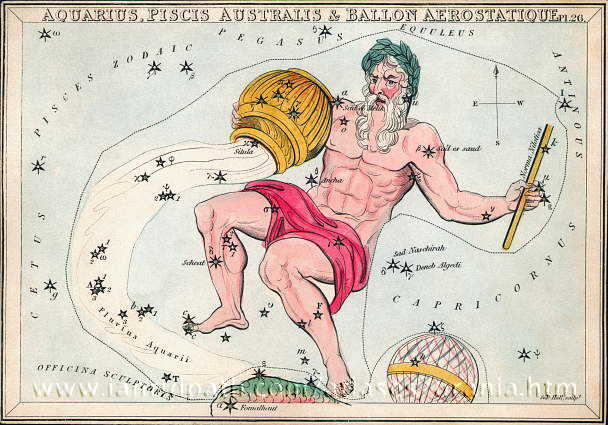

Card 26

Aquarius, Piscis Australis, and Ballon Aerostatique

Urania's Mirror Card 30

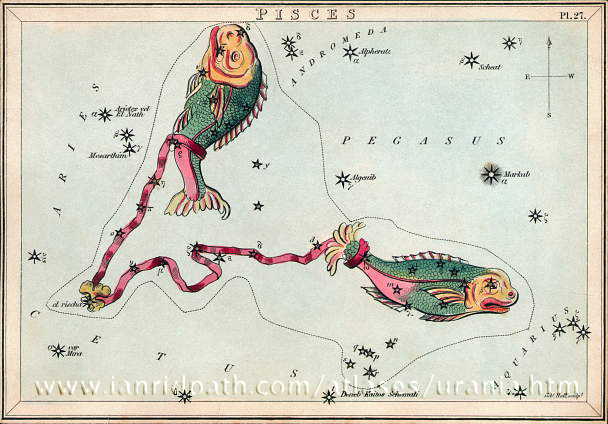

Card 27

Pisces

Urania's Mirror Card 31

Card 28

Psalterium Georgii, Fluvius Eridanus, Cetus, Officina Sculptoris, Fornax Chemica, and Machina Electrica

Urania's Mirror Card 32

Card 29

Orion

Card 30

Canis Major,Lepus, Columba Noachi, and Cela Sculptoris (i.e. Caelum)

Card 31

Monoceros, Canis Minor, and Atelier Typographique

Card 32

Noctua, Corvus, Crater, Sextans Uraniae, Hydra, Felis, Lupus, Centaurus, Antlia Pneumatica, Argo Navis, and Pyxis Nautica
